Description
The GSOR-RRX-04 is a CATV Return Path Receiver Module with four optical inputs. The module is implemented by a low noise PIN diode and a high output level RF amplifier. The module features four independent RF out-put ports, which are located on the rear panel of the receiver module, providing up to 45dBmV output level. Monitoring and configuration setting of the receiver module are all achieved via the front panel and GSOR-EMS equipment management module.

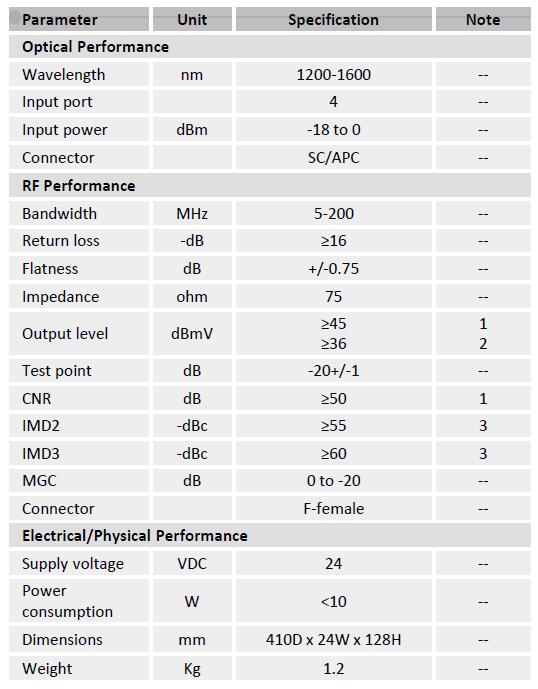

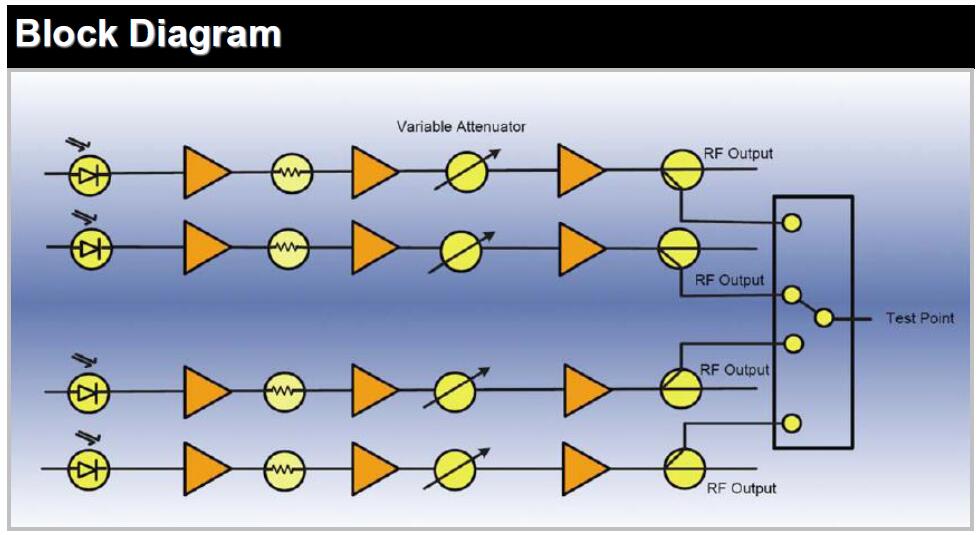

Specifications
1.-7dBm optical input，OMI=16%，0dB attenuation setting
2. -10~0dBm optical input，OMI=16%，AGC setting
3.45dBmV output，two tone test，f1=13MHz，f2=19MHz
Features
■ Four independent return path receivers in a single
module
■ Hot-swap capability
■ Bandwidth 5~200MHz
■ 45dBmV output level
■ -18 to 0dBm input optical power
■ Manual attenuation control
■ RF output test point
■ AGC model option

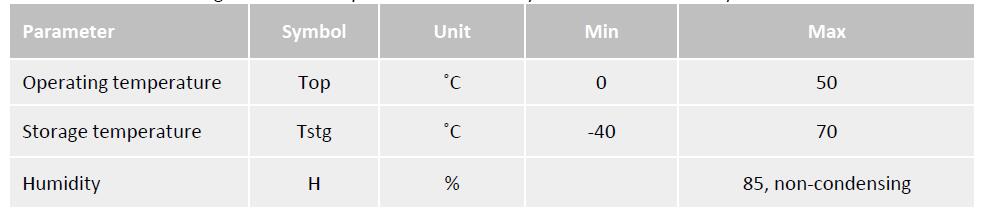

Absolute Maximum RatingsStresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are
absolute stress ratings only. Functional operation of the device is not implied at these conditions. Exposure to
absolute maximum ratings for extended periods can adversely affect device reliability.

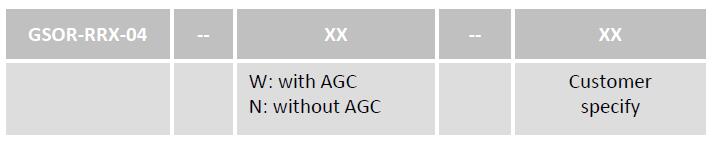

Ordering Information
